Conduit tubes

for ducting of cables and explosion-proof electrical systems (AD-PE)
Conduit tubes
UNI 7683 - UNI 7684

The European norm UNI 7683-7684 specifies the requirements for unalloyed carbon steel welded round galvanised tubes with tapered gas thread. The tubes are intended for ducting of cables in explosion-proof electrical installations (AD-PE).

certificazioni Acciaitubi
Features
Manufacturing process:
Longitudinal welding
Steel:
Fe360
End finishings:
Tapered gas thread as per UNI 6125 with socket as per UNI 7684 or American NPT thread

Size range:
From Ø 1⁄2” (21.3 mm) to Ø 4” (114.3 mm)
Manufacturing thicknesses:
Standard as per the table
Surface finishings:
Hot-dip galvanized as per EN 10240
Standard length:
6000 mm
Quality controls:
Electromagnetic Non Destructive Testing (Eddy Current) as per EN 108931
Tensile test
Bending test
Standard marking:
Marked with blue ink as per norm requirements
Documents:
Certificate of conformity 2.2 as per the EN 10204 norm. 3.1B certificate on request

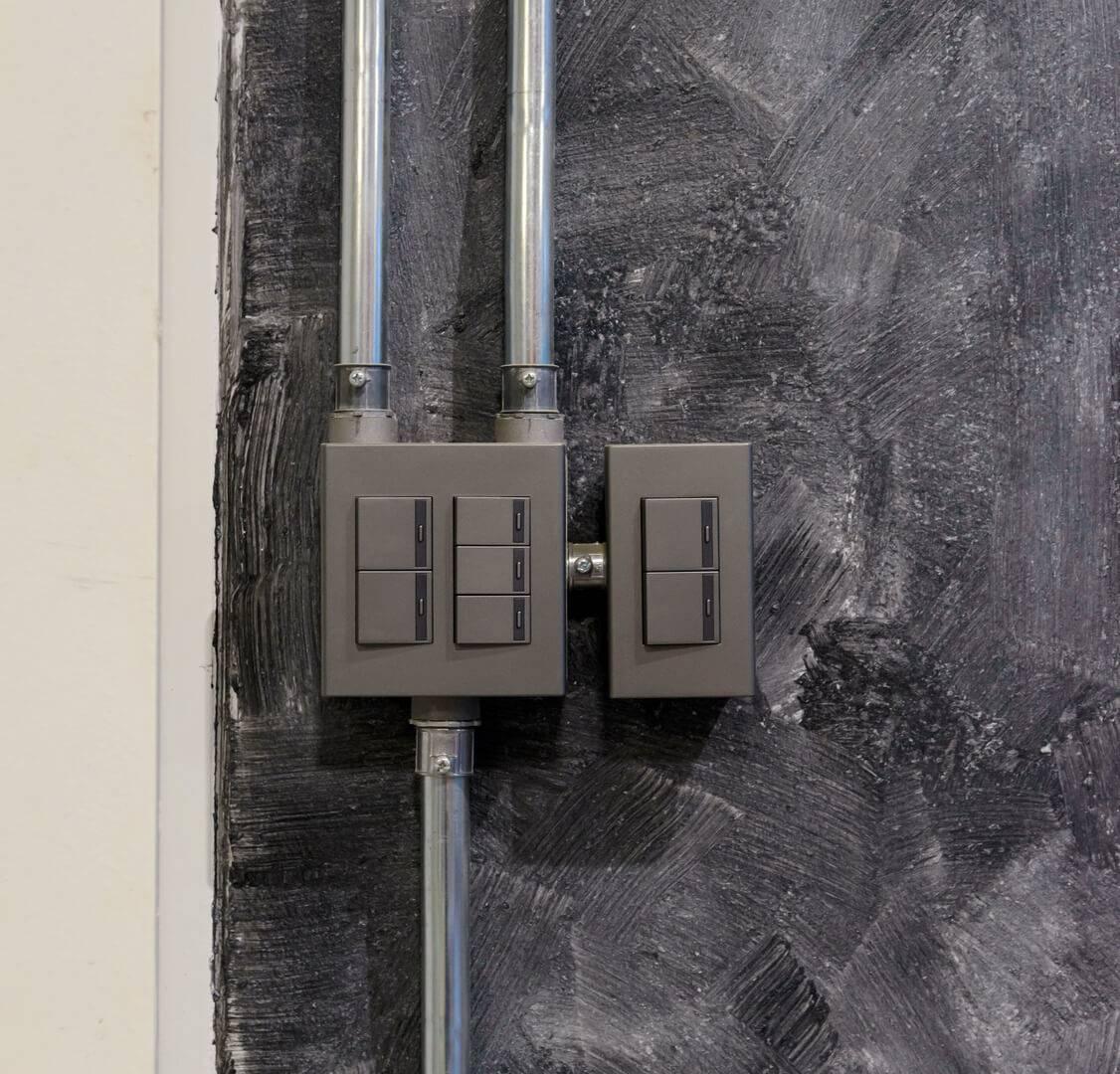

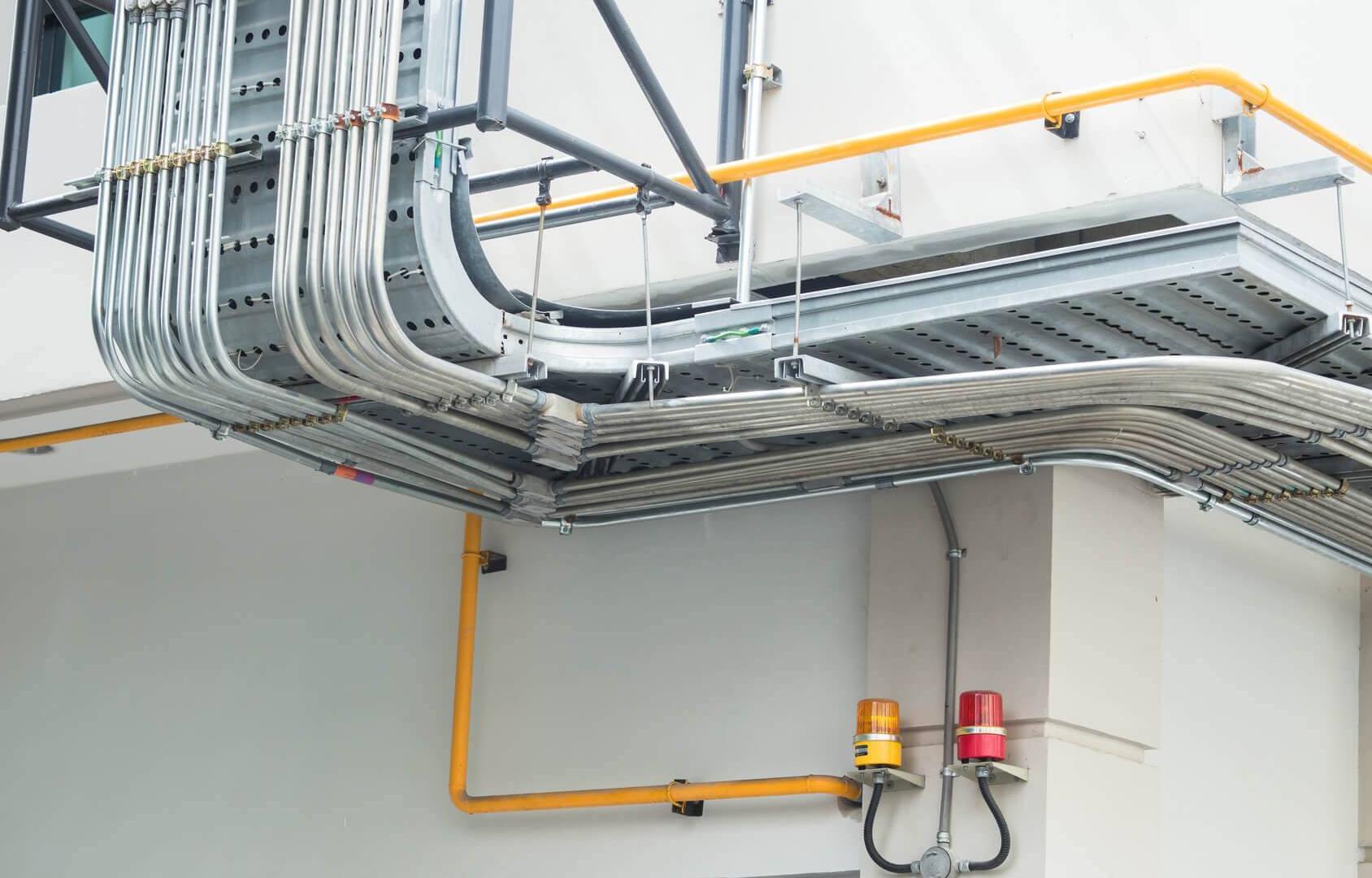

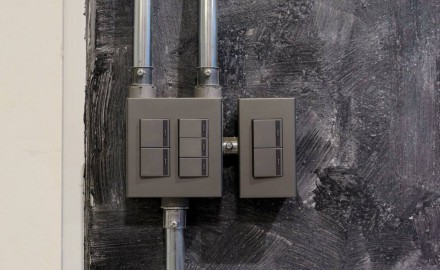

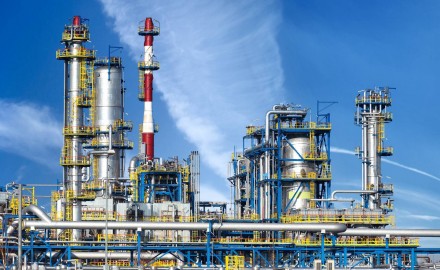

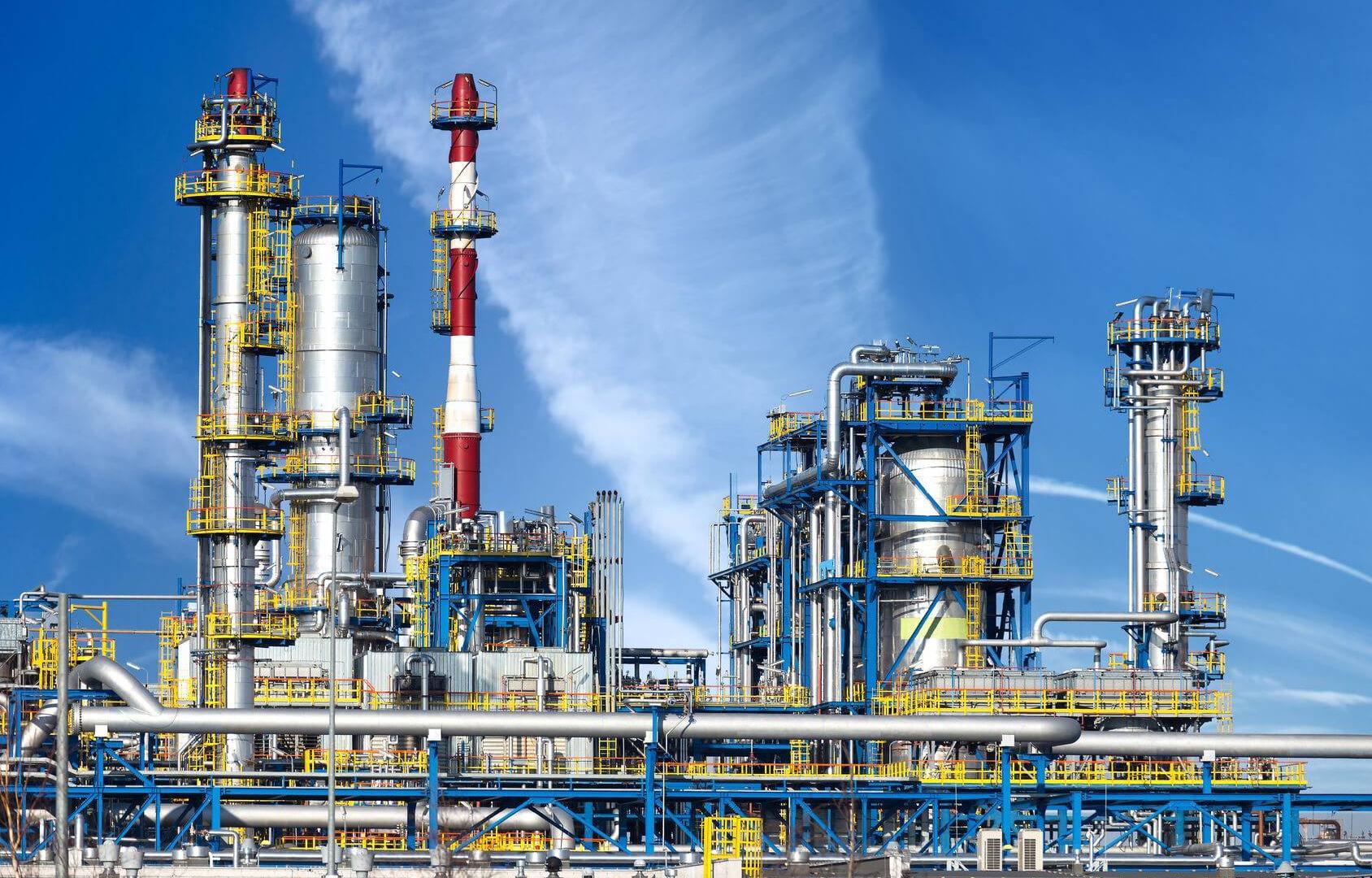

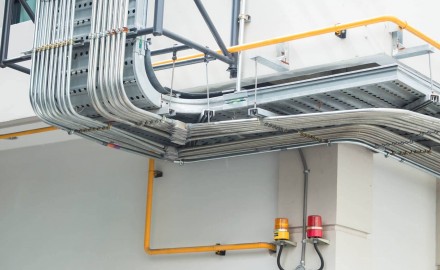

Applications
